PLC-Lab Pro 3.1.0

Overview of PLC-Lab Pro 3:

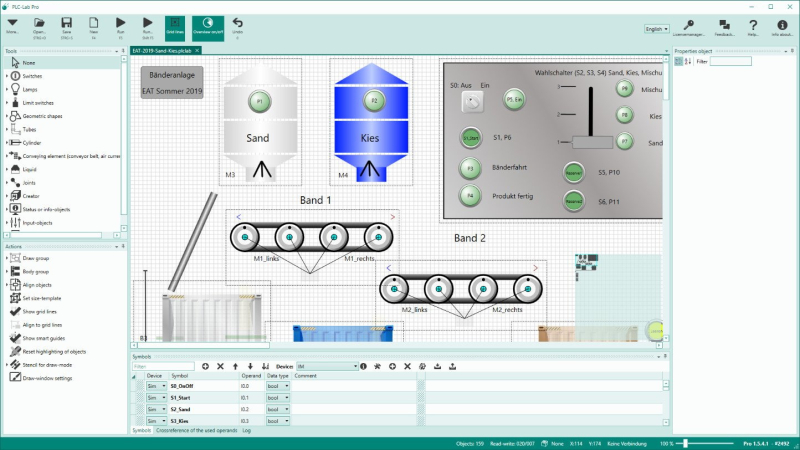

PLC-Lab Pro allows you to create a simplified digital twin to train your PLC or find all the logic errors in your PLC program. Objects in PLC-Lab provide extensive design and installation options, so there are many types of projects you can do with PLC-Lab. The objects can be assigned physical properties, which then influence the behavior of the objects during simulation. For example, objects can be depend on gravity and be magnetic. In addition, you can set parameters such as density, surface friction and elasticity. An integrated physics engine ensures the realistic simulation of the objects. The user interface and the drawing area of PLC-Lab are entirely vector-oriented. This means that the objects in PLC-Lab can be enlarged or reduced in size without any loss of quality.

From simple to complex

• The complexity of creating your digital twin is up to you. You can just use buttons, lamps and a few cylinders, or you can create a virtual scene as realistic as possible using real photos of the installation or images created by a designer. The goal should be that the virtual system delivers the same signals to the PLC and reacts to the outputs as the real system.

Differences to Factory I/O

• Factory I/O is 3D and PLC-Lab is 2D. But much more important: Factory I/O is designed for PLC training and it can be used to build certain and simplified machine types. The visual representation of the created scenes in 3D and the real-time sound ensures a wow effect. If you can build your desired scene with the parts of Factory I/O, it is the perfect product for you. However, if you want to digitize an existing hardware model or have exact requirements for a virtual scene, then PLC-Lab is the right choice. PLC-Lab is suitable for PLC training and for professional users.

Features of PLC-Lab Pro

• From simple to complex models
• Differences to Factory I/O
• It can be connected to many different systems
